360° GeoSAR Monitoring System
Precision down to 0.1 mm.
360° coverage with real-time data updates.
IP65-rated and just 25 kg without its mounting stand.
Achieve unparalleled accuracy with the PS-2000, delivering precision to 0.1 mm. Leveraging advanced differential interferometry and circular synthetic aperture imaging, it provides reliable, contact-free data for slope stability and deformation analysis.
Monitor large areas with the PS-2000's 360° coverage. The system provides comprehensive monitoring with high data update rates, enabling real-time insight and timely decision making to manage risk and address potential issues.

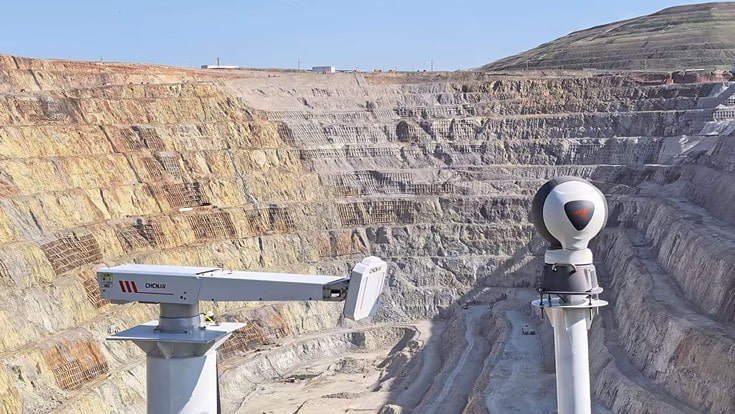

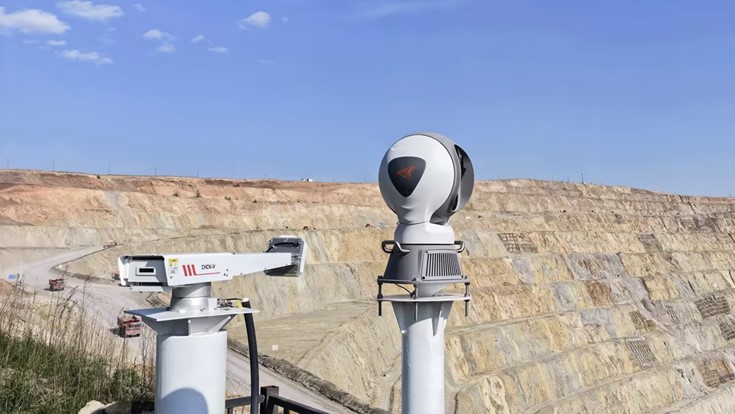

The PS-2000's extended range covers large areas with precise data over long distances, ideal for monitoring open pit mines and large infrastructure projects.
Gain immediate insight with the PS-2000's high data update rates. It provides continuous, real-time monitoring, allowing users to quickly identify potential problems or changes.
The PS-2000’s main unit weighs just 25 kg, ensuring high portability. Its IP65 rating provides dust and water resistance, making it perfect for demanding surveillance conditions with dependable performance.
Deploy the PS-2000 quickly and efficiently in a variety of environments. Its compact design and quick setup capabilities make it ideal for both temporary and long-term monitoring projects, from construction sites to natural disaster monitoring.
Ensure continuous operation with the PS-2000's immunity to weather and lighting conditions. The system's performance is unaffected by environmental factors, ensuring consistent monitoring data in all conditions.
Landslide Detection
Mine Slope Stability
Tailings Dam Monitoring
Quarry Stability
360° GeoSAR Monitoring System
SEEKING FOR PERFECT SOLUTION TO FIT YOUR NEEDS?
Contact CHC Navigation to create a customized solution tailored to meet the specific needs of your business.
CHCNAV H3
Integrated GNSS Receiver for Monitoring
CHCNAV MAS
Cloud-Based Monitoring and Alarm Platform
Radar such as the PS-2000 can be used alongside GNSS sensors, tiltmeters, and other monitoring instruments. Integrated data provides comprehensive insights into movements and deformations, enhancing monitoring effectiveness.
Radar systems provide precise data on ground movements and deformation, enabling early detection of landslide risks. This supports timely warnings and interventions to mitigate damage and ensure safety.
The PS-2000 is ideal for a wide range of applications, including road and railway embankments, open-cast mines, landslides, hydraulic dams, and scientific research, providing precise and reliable monitoring data.
The PS-2000 provides real-time data updates, completing a 360° scan in 120 seconds and a 180° scan in 60 seconds, ensuring timely insights for effective monitoring.
The PS-2000 measures 1130 mm x 420 mm x 730 mm and weighs 25 kg, making it a portable and robust solution for monitoring applications.
The PS-2000 features Ethernet connectivity and uses Frequency Modulated Continuous Wave (FMCW) modulation in the Ku band for reliable data transmission.
