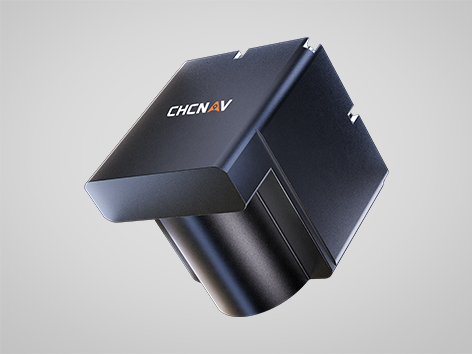

GlobalCombine sonar, temperature, attitude, positioning, and heading.
2.7 kg, 12.5 cm-sized unit for easy deployment.
Integrated IMU for roll, pitch, and yaw.
Capture detailed underwater topography with the HQ-400’s multibeam sonar. Its 512 beams (maximum 1024) provide high-resolution data for precise mapping and analysis, ensuring accurate bathymetric surveys.
The integrated attitude sensors and temperature sensors ensure accurate depth measurements and compensation for roll, pitch, and yaw. The Post-Processed Kinematics (PPK) solution provides reliable data, mitigating the effects of poor GNSS signal reception or water turbulence.
The HQ-400 features a pre-calibrated IMU for roll, pitch, and yaw, eliminating the need for field calibration. Reduced setup time improves operational efficiency, enabling surveyors to focus on data collection and meet project deadlines.
Perform a wide range of underwater survey tasks with the HQ-400’s advanced features. The system supports tilt measurement, real-time roll stabilization, near-field focusing, and water column imaging.
CHCNAV CMS for PC and EasySail for Android offer advanced intelligent surface filtering, noise point removal, and flexible data display options, ensuring efficient survey management and high-quality results. Optional Qinertia PPK software enhances the accuracy of GNSS/INS data across a wide range of applications.
Easily transport and deploy the HQ-400 with its lightweight (2.7 kg) and compact (12.5 cm cubic shape) form factor. This design makes it suitable for both manned survey boats and small unmanned surface vehicles (USV), enhancing operational flexibility.
River and Lake Topography
Tailings Pond Survey
Port Terminal Survey
Channel Dredging
SEEKING FOR PERFECT SOLUTION TO FIT YOUR NEEDS?
Contact CHC Navigation to create a customized solution tailored to meet the specific needs of your business.
Sensors such as the HQ-400 can be used alongside USVs, ROVs, and other hydrographic equipment. The integrated data provides comprehensive and detailed marine maps, enhancing the quality and utility of marine surveys.
Multi-beam echosounders provide detailed and accurate bathymetric data over wide areas, enabling comprehensive mapping of underwater features and supporting precise marine navigation and construction.
The HQ-400’s integrated design and flexible installation options make it easy to mount on various platforms, reducing setup time and enhancing operational efficiency.
The HQ-400 is equipped with a high-performance IMU (inertial measurement unit) built into the system, along with PPK post-processing, ensuring reliable measurement data even in environments with poor GNSS signals reception and turbulent waves.
The HQ-400 has a low power consumption of 25 W, making it suitable for extended survey missions and energy-efficient operation.
The price of the CHCNAV HQ-400 multi-beam echo sounder depends on your selected configuration. For detailed pricing and options, please contact CHC Navigation through the inquiry page.
