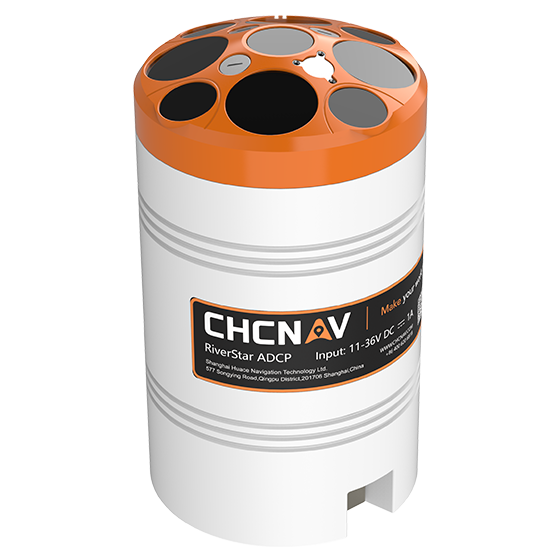

Dual-frequency Acoustic Doppler Current Profiler
Supports 1200 kHz and 3600 kHz
4 beams @1200 kHz, 4 beams @3600 kHz, and 1 vertical beam @600 kHz
Water velocity profiling resolution: 1 mm/s.
Easy to operate with direct result output.
The RS3600D measures only 12 cm in diameter and weighs 2 kg. Compatible with the APACHE 4 series USV, it can also be mounted on trimarans, cableway towing systems, motorized survey vessels, and channel buoys. Its versatility supports effective deployment across a wide range of hydrological survey applications.
ADCPs often struggle to provide accurate data in near-still water where flow velocities fall below 5 mm/s due to signal noise limitations. The RS3600D offers a minimum velocity measurement resolution of 1 mm/s, enabling precise data acquisition in low-velocity environments.

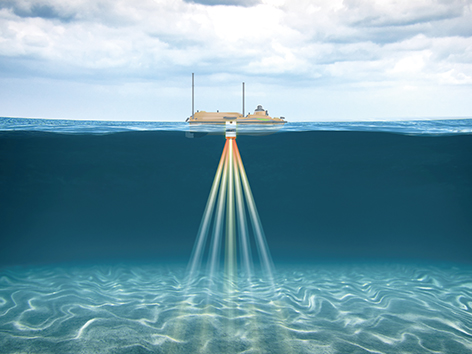

The RS3600D ADCP features a 9-beam design with dual current measurement frequencies of 1200 kHz and 3600 kHz, and a standard 600 kHz central depth measurement frequency. It supports both deep and shallow water surveys, as well as high and low flow rate conditions, delivering versatile operation in a single instrument.
The RS3600D ADCP automatically adjusts its measurement frequency based on water conditions, removing the need for manual assessment and adjustment. Its automatic measurement mode maximizes efficiency, reduces time spent on parameter settings, and allows operators to focus on on-site survey tasks

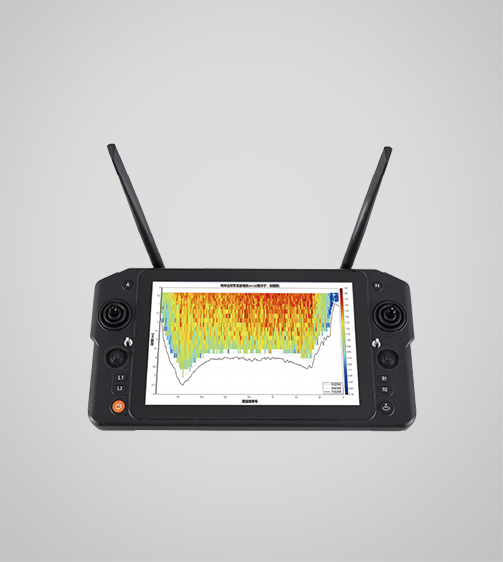

HydroProfiler for PC provides efficient and flexible data management for comprehensive hydrological analysis. EasySail for the CHCNAV APACHE 4 USV supports the output of flow summary tables, flow test records, and results tables, and includes one-click file transfer and code sharing to a computer.

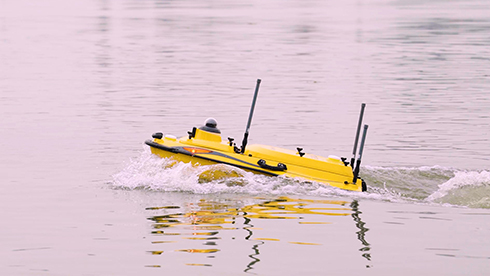

Hydrological Measurement

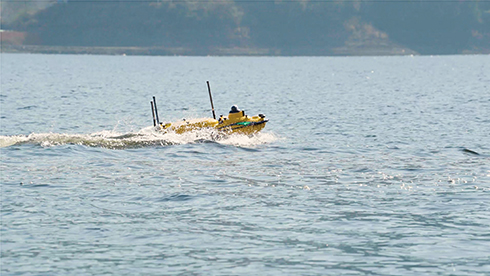

Ecological Flow

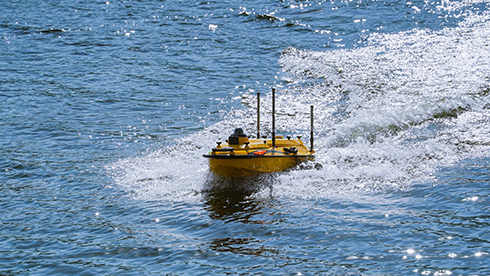

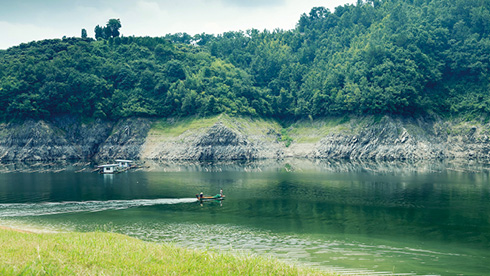

Channel Monitoring
Dual-frequency Acoustic Doppler Current Profiler
SEEKING FOR PERFECT SOLUTION TO FIT YOUR NEEDS?
Contact CHC Navigation to create a customized precision solution tailored to meet the specific needs of your business.
CHCNAV APACHE 4
Hydrographic and Bathymetric Surveys USV
CHCNAV RS-1200 & RS-600
High Accuracy Acoustic Doppler Current Profiler
The CHCNAV RS3600D has an operational measurement range of 0.2 to 100 meters, allowing for comprehensive coverage of both shallow and deep waters.
The RS3600D comes standard with compass, tilt, and temperature sensors. A pressure sensor is also available as an optional feature.
Yes. Data can be stored in on-board memory and synchronized via software, ensuring reliable data retention and easy access for comprehensive analysis.
The CHCNAV RS3600D provides water velocity measurement accuracy of 0.25% ± 2 mm/s, ensuring precise and consistent results.
The price of the CHCNAV RS3600D ADPC depends on your selected configuration. For detailed pricing and options, please contact CHC Navigation through the inquiry page.
