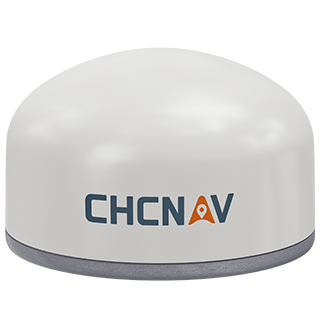

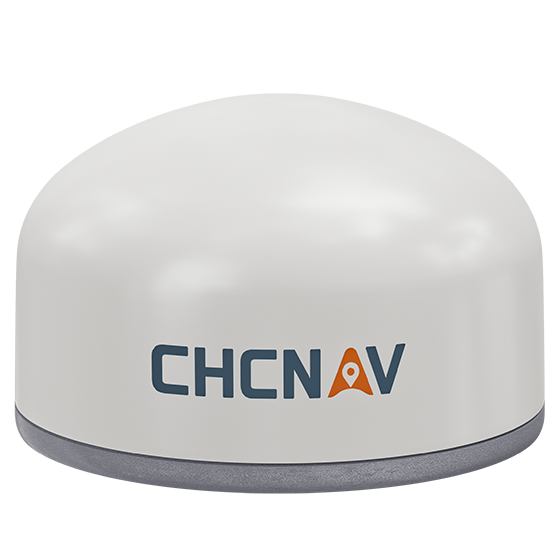

Integrated GNSS Receiver for Monitoring
Combined MEMS with GNSS technology.
All-in-one unit simplifying installation.
TCP, MQTT, and NTRIP protocols.
Achieve timely response to deformation with the H3's MEMS and variable frequency control. The GNSS+MEMS ensures rapid data uploads when sudden deformation is detected, providing immediate warnings and overcoming the limitations of long-term static GNSS monitoring.

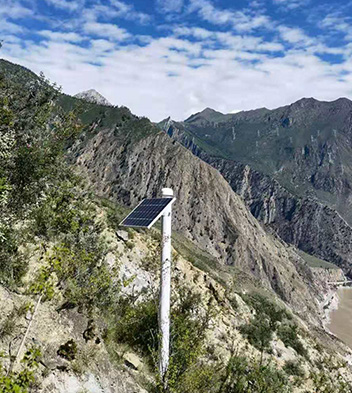

Ensure the highest quality positioning data with the H3's iSTAR algorithm and broad GNSS compatibility with support for GPS, GLONASS, BeiDou, Galileo and QZSS. MEMS data enhances the integrity validation process of GNSS-based deformation data.

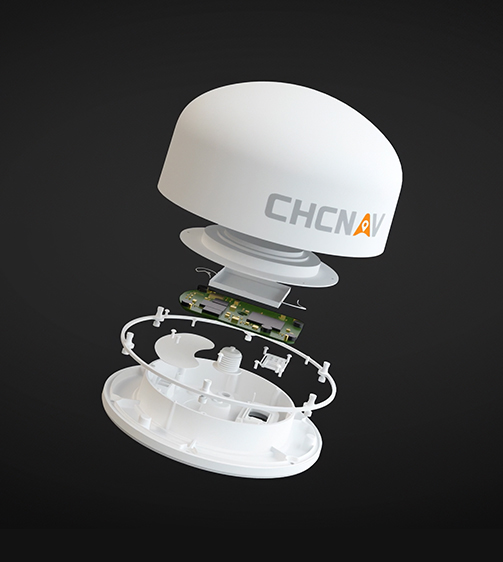

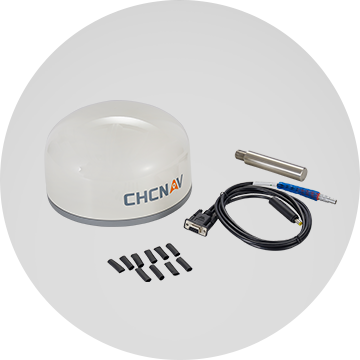

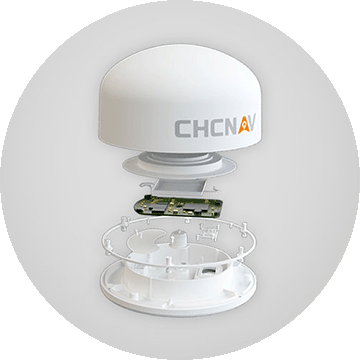

Simplify on-site installation with the H3. Its multi-data sensor design integrates the GNSS antenna and module, MEMS component, and 4G modem, eliminating the need for additional components beyond the power supply.

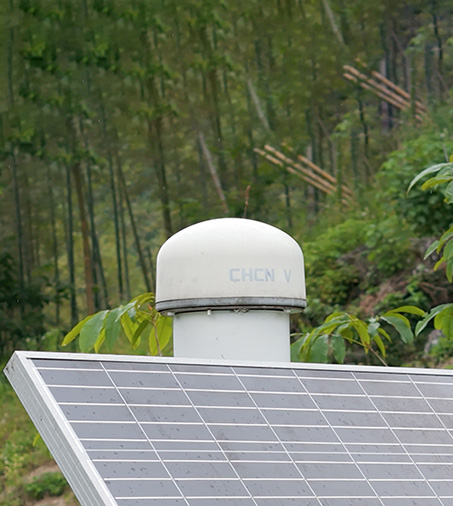

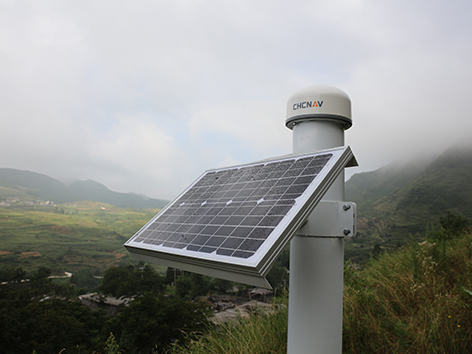

Designed for extended monitoring scenarios, the H3’s integrated design and low power consumption (less than 1.8W) make it suitable for outdoor installations and solar panel powering. The IP67 enclosure ensures reliable performance in harsh environmental conditions.

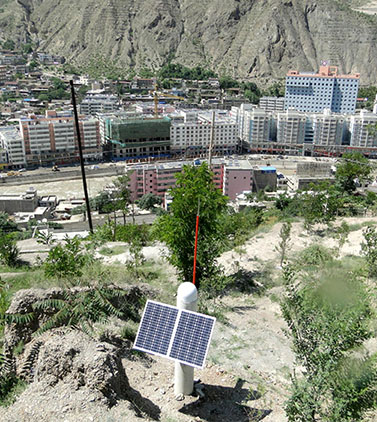

The H3 advanced communication protocols such as TCP, MQTT, and NTRIP supports efficient data transfer and real-time monitoring for reliable data communication.

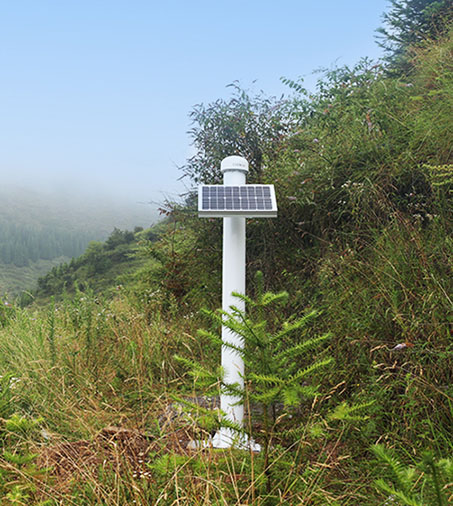

Maintain consistent and reliable data with the H3's energy-efficient design. Its low power consumption makes it ideal for long-term monitoring projects that require continuous operation without frequent maintenance.

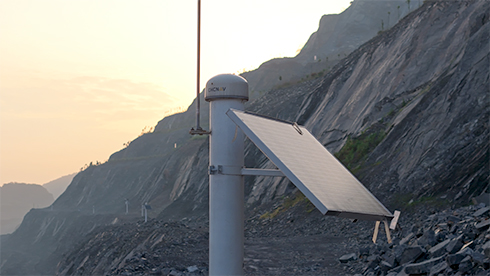

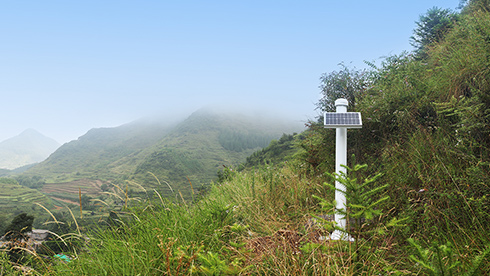

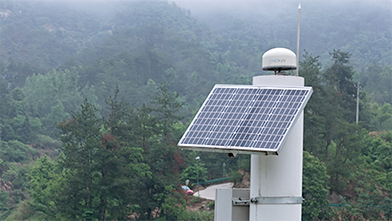

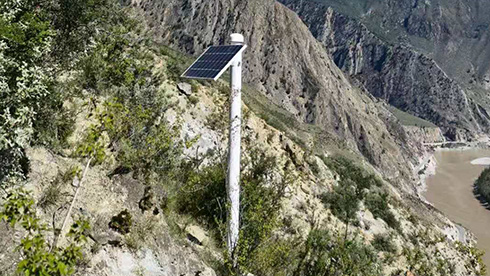

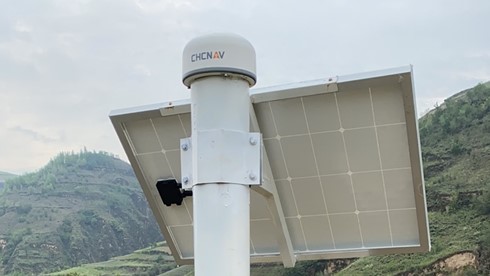

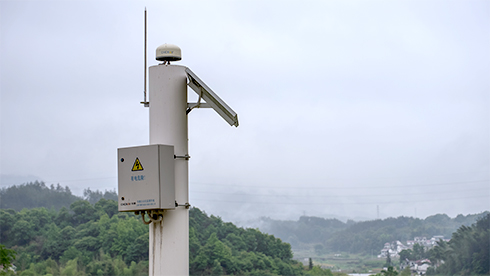

Landslide Detection
Hydropower Plant Monitoring

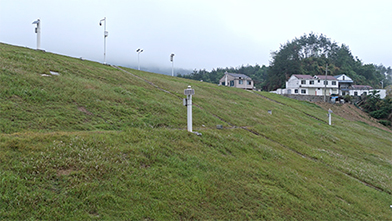

Dam Stability Monitoring

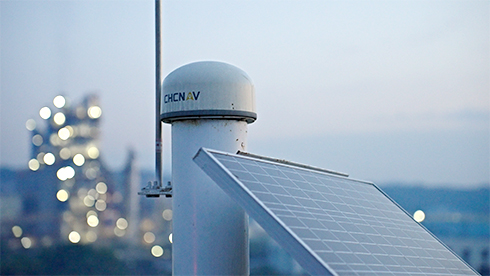

Bridge Deformation Monitoring
Integrated GNSS Receiver for Monitoring
SEEKING FOR PERFECT SOLUTION TO FIT YOUR NEEDS?
Contact CHC Navigation to create a customized solution tailored to meet the specific needs of your business.
CHCNAV PS-2000
360° GeoSAR Monitoring System
CHCNAV MAS
Cloud-Based Monitoring and Alarm Platform
GNSS sensors such as the CHCNAV H3 are used for monitoring ground and structural movements with high precision. They provide real-time data for stability assessments in applications like landslide monitoring, construction, and infrastructure safety.
Key features include GNSS multi-frequency support, high signal sensitivity, real-time data processing, robust design for harsh environments, and compatibility with monitoring software for detailed analysis.
The H3 GNSS Sensor can be used alongside tiltmeters, accelerometers, and other monitoring instruments. Integrated data provides comprehensive insights into structural and ground movements, enhancing monitoring effectiveness.
The H3 has a low power consumption of 1.8 W and operates on a nominal 12 V DC power input, making it suitable for solar panel powering.
The H3 operates reliably in temperatures ranging from -40°C to +65°C, making it suitable for various environmental conditions.
The H3 supports 1408 GNSS channels, ensuring comprehensive compatibility with GPS, GLONASS, BeiDou, Galileo, and QZSS satellite constellations.
