CHCNAV H960

Explore our FAQs

• 1.What is the H960 digital data logger used for?

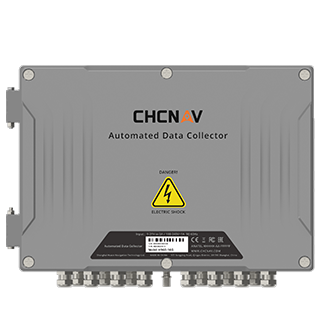

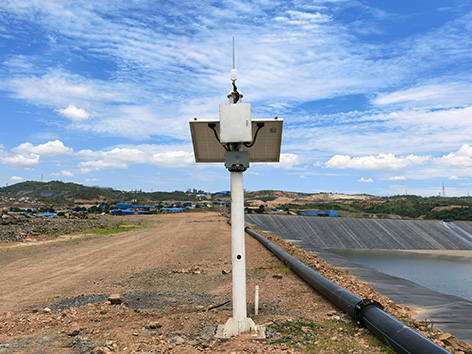

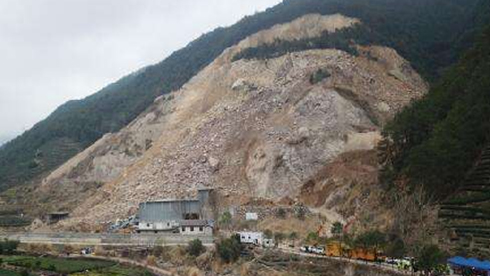

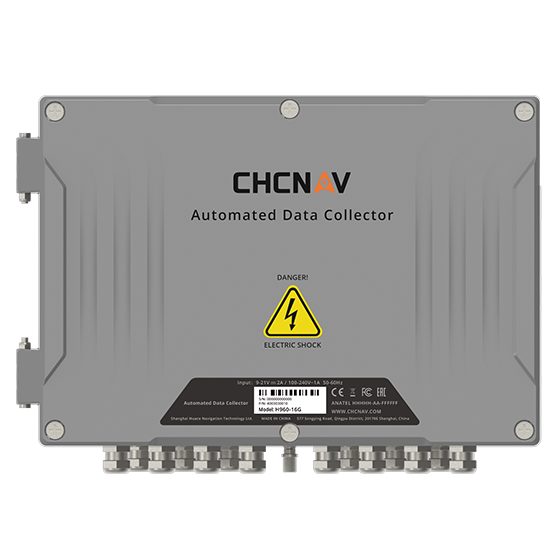

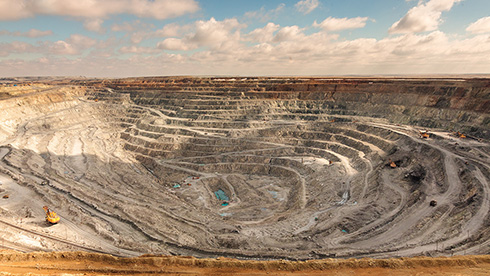

  The CHCNAV H960 is an automated digital data logger designed for remote monitoring sites. It collects and transmits data from geotechnical and environmental sensors for applications such as infrastructure monitoring, mining, water resources, and geohazard detection.

• 2.What types of sensors can be connected to the H960?

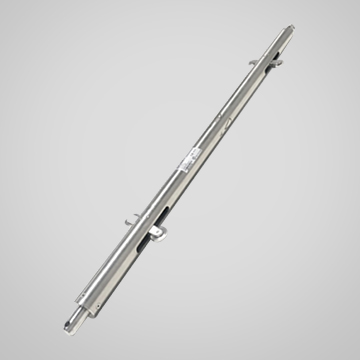

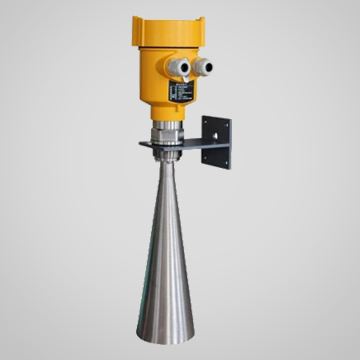

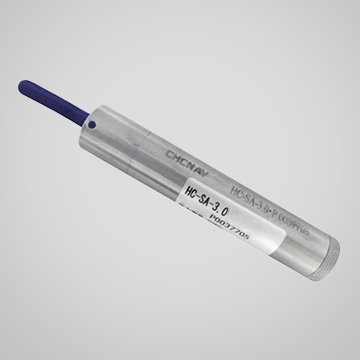

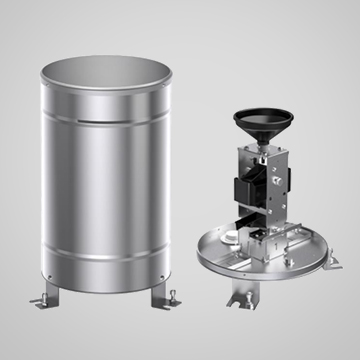

  The CHCNAV H960 supports vibrating wire, potentiometer, differential resistance, current, voltage, digital, and switch sensors. This allows connection to rain gauges, piezometers, inclinometers, tiltmeters, water level sensors, crack meters, and other monitoring instruments.

• 3.How does the H960 transmit monitoring data?

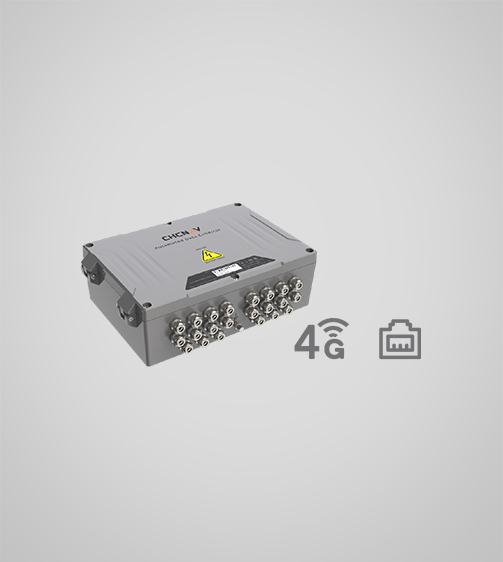

  The CHCNAV H960 data logger transmits data through built in 4G wireless communication or RJ45 Ethernet. Automatic breakpoint resume ensures reliable data delivery even when network connectivity is unstable.

• 4.What does the H960 Status Light indicate?

  Normal: solid green.
  Abnormal: blinks every 1 second when external power is not detected, the battery is below 5.5 V, or a sensor data error occurs.
  Maintenance: blinks every 0.25 seconds during firmware upgrade or sensor data erasure.

• 5.What does the H960 Network Light indicate?

  A solid orange Network Light means the H960 data collector has successfully connected to a network server through one of its communication channels.

• 6.What does the H960 Power Light indicate?

  A solid red Power Light confirms the built-in battery is fully charged. A 1 second blinking pattern indicates the H960 battery is charging.

• 7.How can I confirm the H960 is collecting data normally?

  During data acquisition, the H960 produces a soft clicking sound at each collection cycle. You can also restart the device to trigger an immediate acquisition cycle and confirm normal collection.

• 8.What is the price of the CHCNAV H960?

  The price of the CHCNAV H960 data collector depends on your selected configuration. For detailed pricing and options, please contact CHC Navigation through the inquiry page.
