Main Features

LIVOX AVIA Scanner

Long-range scanning up to 450m.
26 MP Camera

High-resolution imaging.
GNSS + IMU

High-precision inertial navigation.
Skyport Interface

Easy integration with DJI and other UAVs.

Benefits and Performances

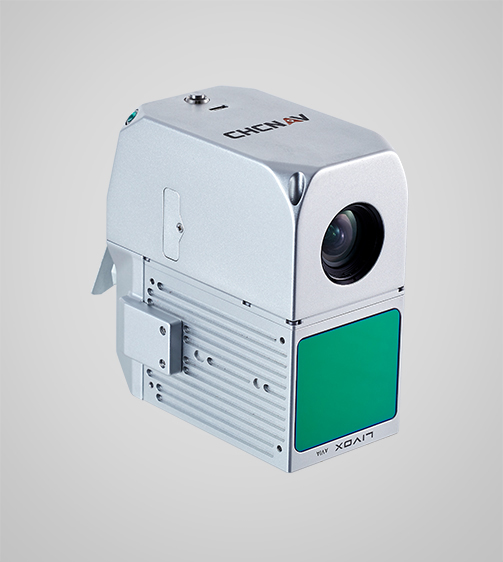

01 High-Precision Data

Achieve high-precision data with the integrated LIVOX AVIA laser scanner and 26 MP industrial camera. Obtain detailed and reliable geospatial data for various applications, from topographic mapping to emergency response.

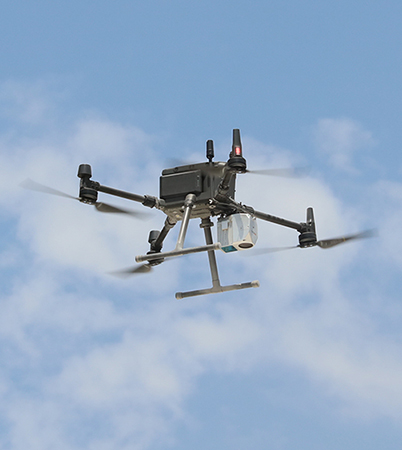

02 Long-Range Scanning

Utilize long-range scanning capabilities up to 450 meters with high point density. Enhance productivity by covering extensive areas quickly and accurately in a single UAV flight.

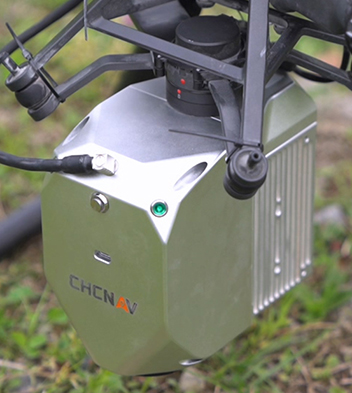

03 Cost-Effective Solution

Access advanced LiDAR technology at an affordable price. The AA450 democratizes geospatial reality capture, making it accessible to a wider range of users and applications.

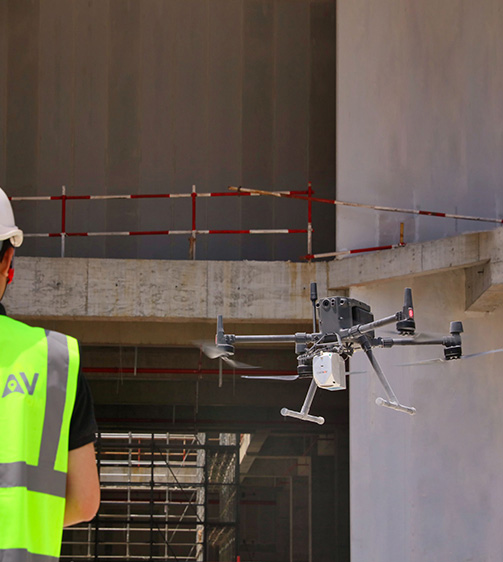

04 Easy-to-Use Interface

Operate with simplicity using the AlphaAir 450’s intuitive design. Ideal for non-professional users, it enables efficient and accurate data collection without the need for extensive training.

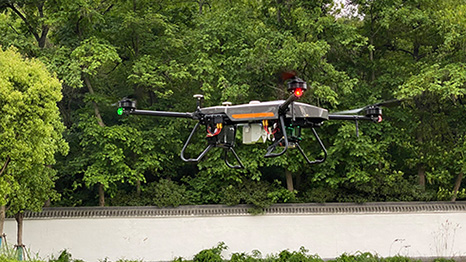

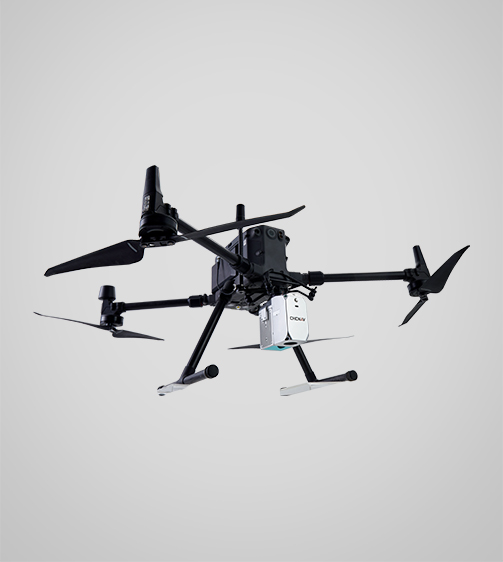

05 Versatile UAV Integration

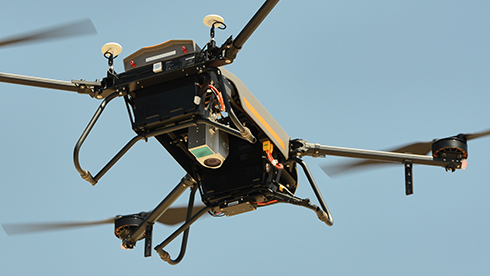

Compatible with multiple UAV platforms, including DJI M300/M350 and CHCNAV BB4. The Skyport interface allows seamless integration, ensuring versatility and ease of use.
06 Enhanced Weather Resistance

Operate confidently in various weather conditions with the IP64 rating, ensuring consistent performance and data quality, even in challenging environments.

Detailed Specifications

Specifications

Resources

Comparison

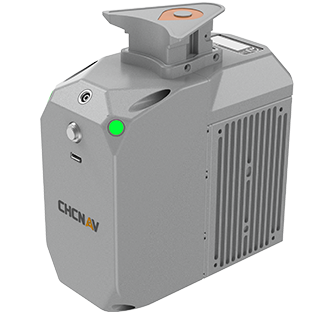

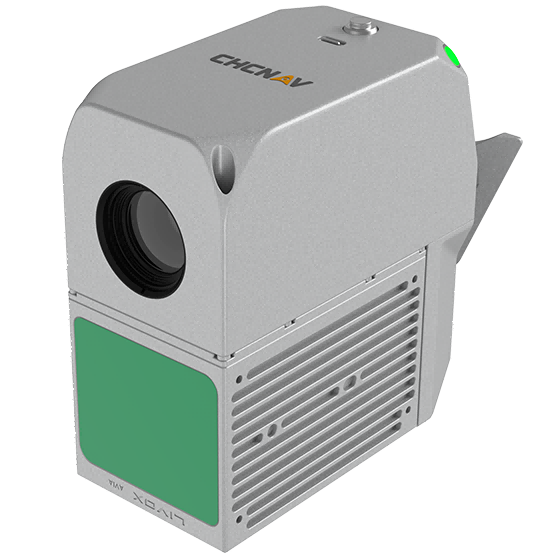

CHCNAV AlphaAir 450

Airborne LiDAR+RGB System
Laser Scanner
- Range : 450 m
- Scanning rate : 240.000 / 480.000 / 720.000 pulses/sec
- Field of view : 70.4°
- Returns : Up to 3
Positioning
- GNSS : Full GNSS
- IMU : 500 Hz
- Precision max. : 10 cm H / 5 cm V
Imaging
- Resolution : 26 MP
Download

AA450_DS_EN.pdf

2.29 MB

Download

AA450_DS_FR.pdf

3.29 MB

Download

AA450_DS_ES.pdf

3.03 MB

Download
- CHCNAV AlphaAir 450

  Airborne LiDAR+RGB System
  - Laser Scanner
    - Range
      :
      450 m
    - Scanning rate
      :
      240.000 / 480.000 / 720.000 pulses/sec
    - Field of view
      :
      70.4°
    - Returns
      :
      Up to 3
  - Positioning
    - GNSS
      :
      Full GNSS
    - IMU
      :
      500 Hz
    - Precision max.
      :
      10 cm H / 5 cm V
  - Imaging
    - Resolution
      :
      26 MP

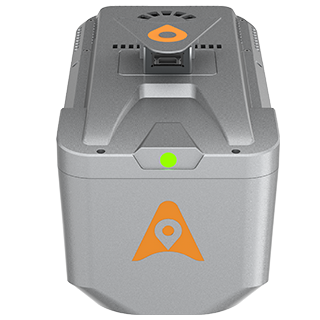

- CHCNAV AlphaAir 10

  Professional Airborne LiDAR+RGB System
  - Laser Scanner
    - Range
      :
      800 m
    - Scanning rate
      :
      500.000 pulses/sec
    - Field of view
      :
      75°
    - Returns
      :
      Up to 8
  - Positioning
    - GNSS
      :
      Full GNSS
    - IMU
      :
      500 Hz
    - Precision max.
      :
      < 5 cm H / < 5 cm V
  - Sensors
    - Camera
      :
      Optional external camera
  - Imaging
    - Resolution
      :
      45 MP
    - Focal length
      :
      21 mm

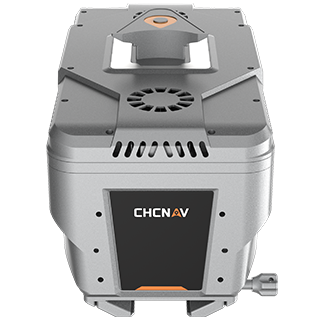

- CHCNAV AlphaAir 15

  Premium Airborne LiDAR Solution
  - Laser Scanner
    - Range
      :
      1800 m
    - Scanning rate
      :
      2.000.000 pulses/sec
    - Field of view
      :
      75°
    - Returns
      :
      Up to 16
  - Positioning
    - GNSS
      :
      Fulll GNSS
    - IMU
      :
      600 Hz
    - Precision max.
      :
      <5 cm H / <5 cm V
  - Sensors
    - Camera
      :
      Optional external camera

Explore our FAQs

1. What factors should be considered when choosing an airborne LiDAR system?

Consider factors like pulse rate, range, accuracy, resolution, platform compatibility, and data processing capabilities to select a system such as the AA450 that meets the specific needs of your mapping project.
2. Why is the AlphaAir 450 considered cost-effective?

The AA450 offers advanced LiDAR technology at an affordable price, making high-precision geospatial reality capture accessible to a broader range of users.
3. What UAVs are compatible with the AlphaAir 450?

The AA450 is compatible with various UAVs, including DJI M300, CHCNAV BB4, and other multi-rotor and fixed-wing platforms.
4. How does the AlphaAir 450 ensure high-precision data?

The AA450 integrates the Livox Avia laser scanner and a high-precision GNSS + IMU system, ensuring reliable and accurate geospatial data collection.

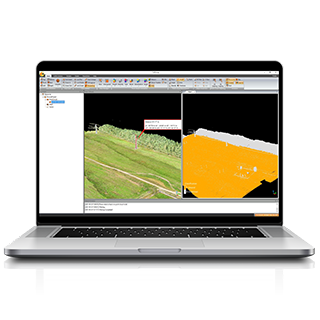

5. What software is included with the AlphaAir 450?

The AA450 comes with CHCNAV CoPre software for efficient post-processing and data alignment.
6. How does the AlphaAir 450 simplify data transfer?

The AA450 features a high-speed USB Type-C connection and 256 GB internal storage, allowing quick and easy data transfer.

CHCNAV AlphaAir 450

Main Features

Benefits and Performances

01 High-Precision Data

02 Long-Range Scanning

03 Cost-Effective Solution

04 Easy-to-Use Interface

05 Versatile UAV Integration

06 Enhanced Weather Resistance

Use Cases

Detailed Specifications

SEEKING FOR PERFECT SOLUTION TO FIT YOUR NEEDS?

Our Latest News

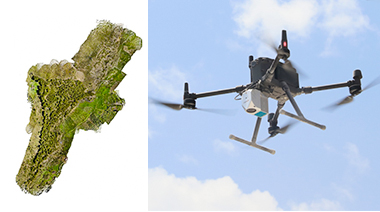

The documentation of archaeological heritage through aerial photogrammetry and UAS-based LiDAR in Spain

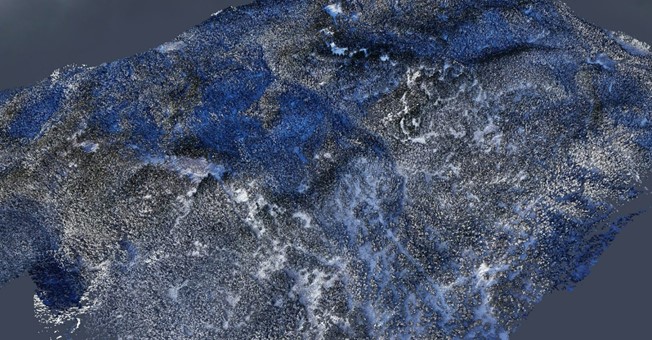

Using the AlphaAir 450 to create a Digital Elevation Model (DEM) for a coal mine project

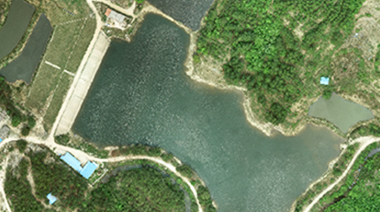

How to create the digital model of the water reservoir in just 1 day

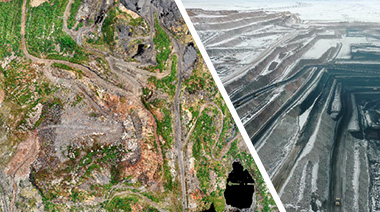

Topographic mapping with UAV LiDAR to increase the output of mining operations

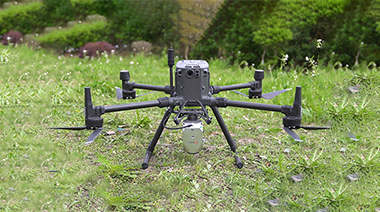

CHC Navigation introduces the AlphaAir 450 LiDAR System
