GlobalUp to 3,200 m range and 2.4M pts/s for large-area airborne mapping.
100 MP nadir and 300 MP oblique cameras for mapping and textured 3D models.

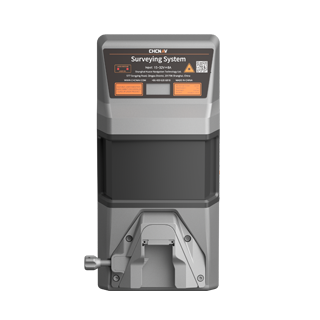

2.6 kg compact payload for UAV and manned aircraft with streamlined pod option.

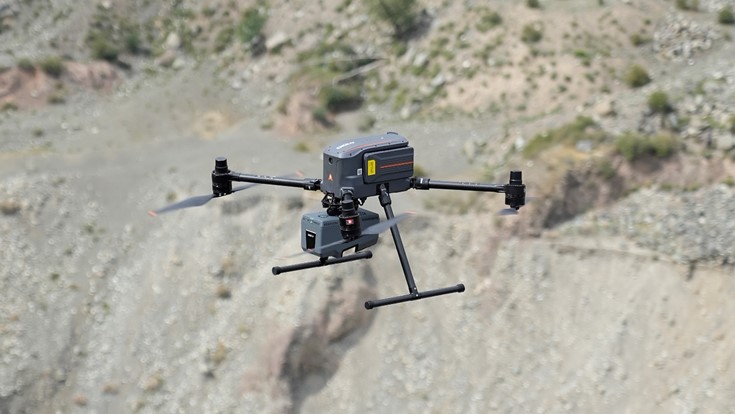

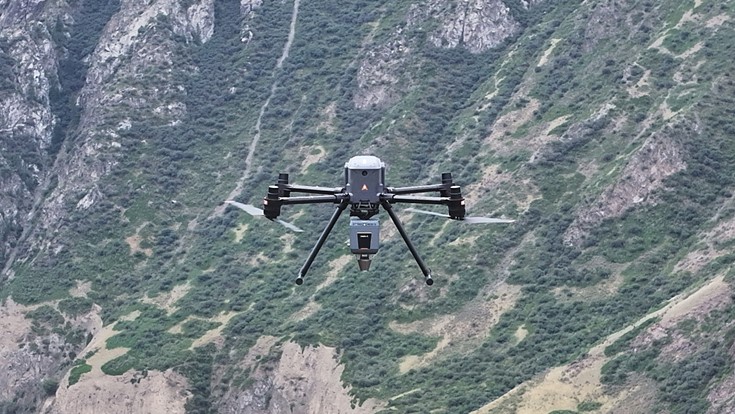

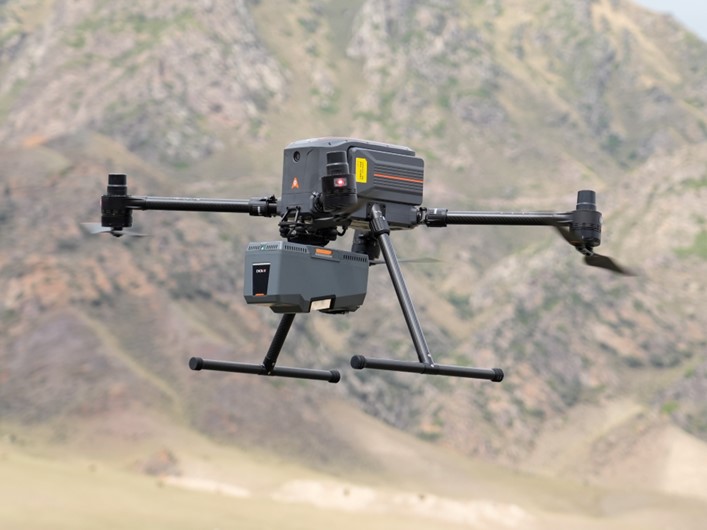

AlphaAir 15 Pro delivers up to 2.4 million points per second with a maximum range of 3,200 m and typical flight altitudes of 500 to 1,200 m AGL. It supports efficient corridor, forest, mountain, and topographic surveys while improving canopy penetration and point cloud coverage over complex terrain.

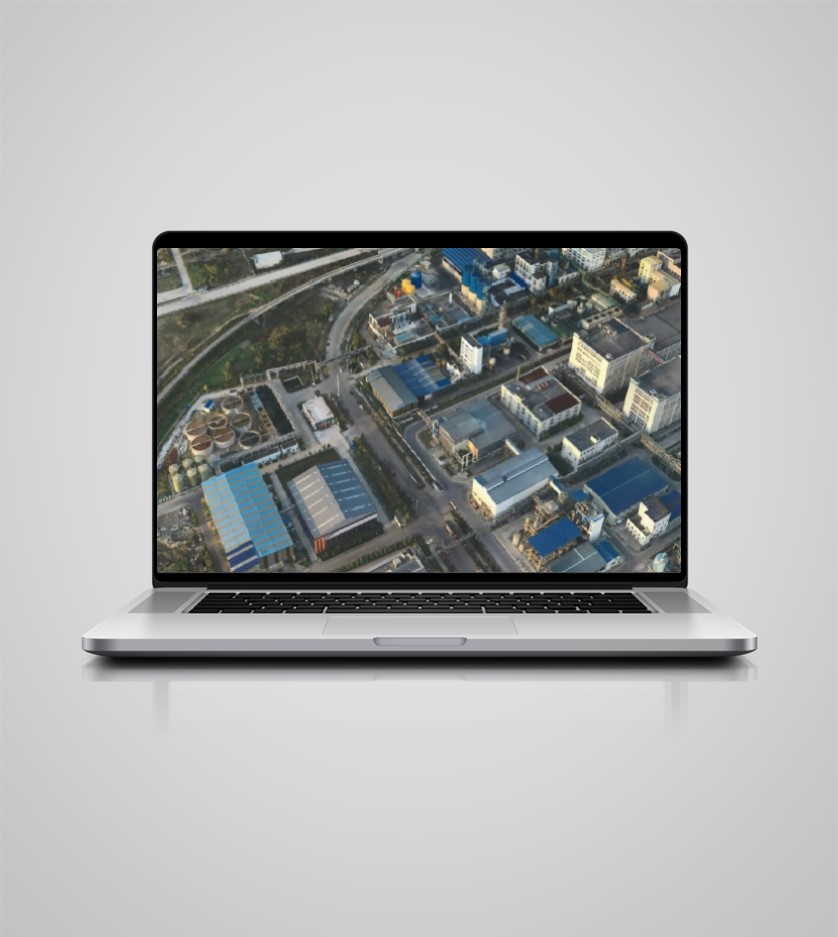

With support for a 100 MP medium-format nadir camera and a 300 MP full-frame oblique camera, AA15 Pro captures detailed imagery at high flight altitude. It supports efficient orthophoto generation, facade capture, textured mesh production, and city-scale 3D reality modeling workflows.

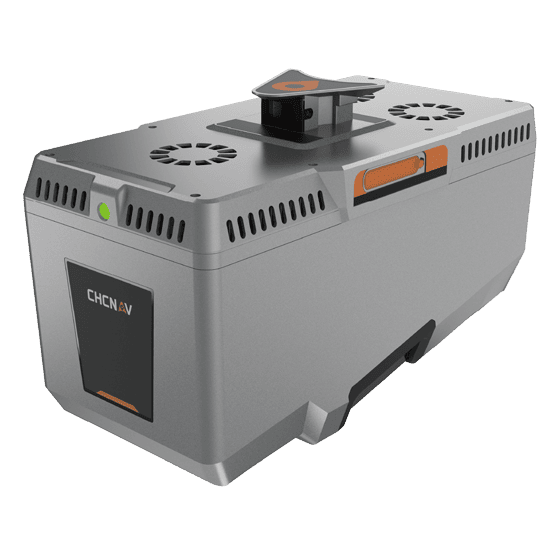

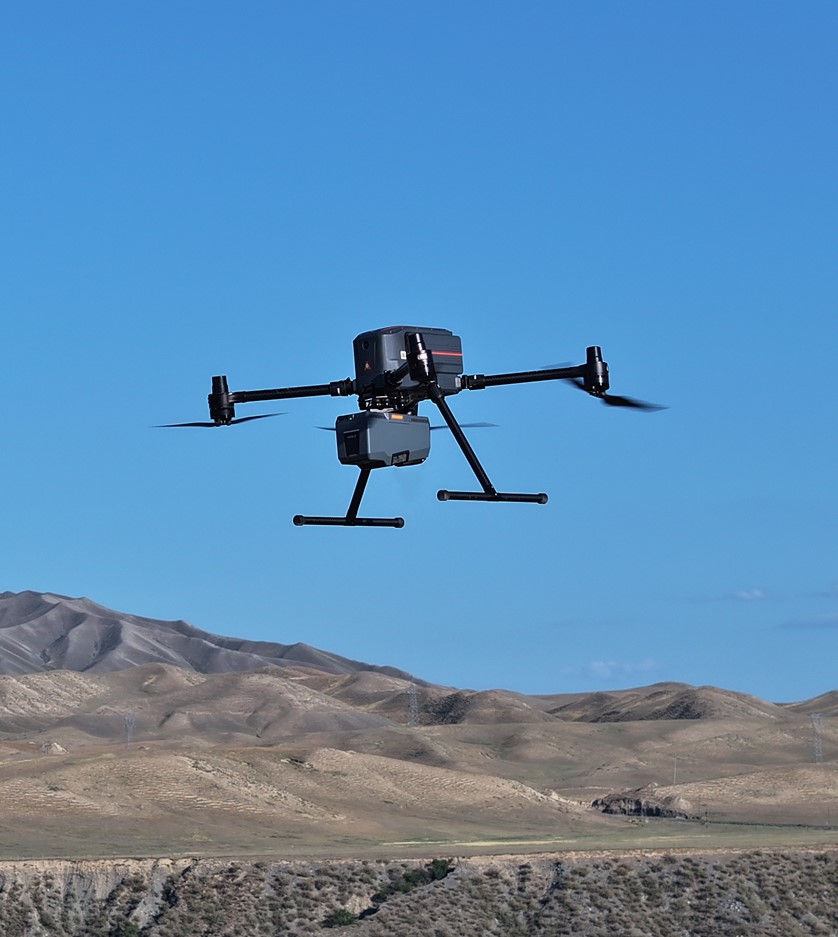

Weighing only 2.6 kg with compact dimensions of 245x131×159 mm, the AA15P supports integration with large fixed-wing UAVs and manned aircraft. Its streamlined airborne pod option enables flexible configurations for professional large-area mapping missions.
Terrain Mapping
City-Scale 3D Modeling

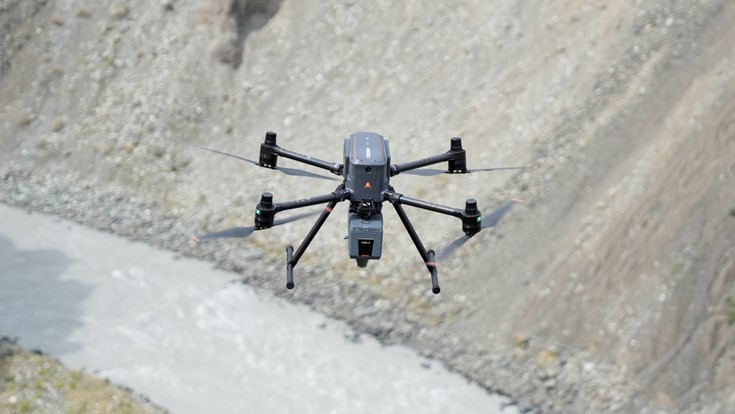

Railway Corridor Mapping

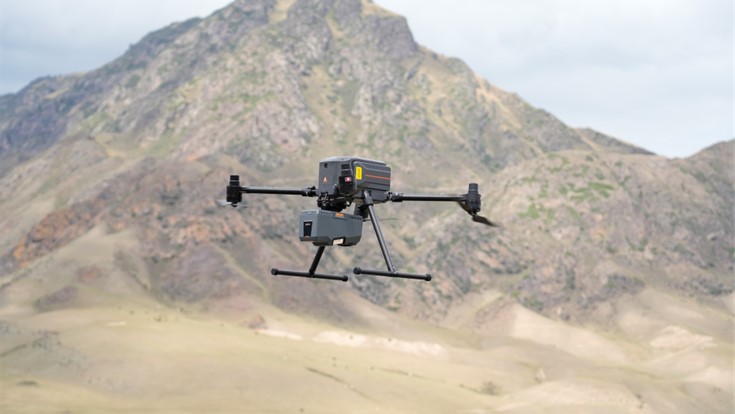

Engineering Survey and Design
The CHCNAV AlphaAir 15 Pro is ideal for large-area topographic mapping, corridor surveying, power line and railway mapping, engineering survey and design, forestry mapping, and city-scale 3D modeling.
AA15 Pro combines long range, high-altitude efficiency, dense point clouds, strong vegetation penetration, and flexible UAV or aircraft integration for demanding large-area airborne mapping workflows.
Compared with AA15, the AA15 Pro extends maximum range from 1,800 m to 3,200 m, supports 100 MP nadir and 300 MP oblique cameras, and adds a streamlined pod option for manned aircraft integration.

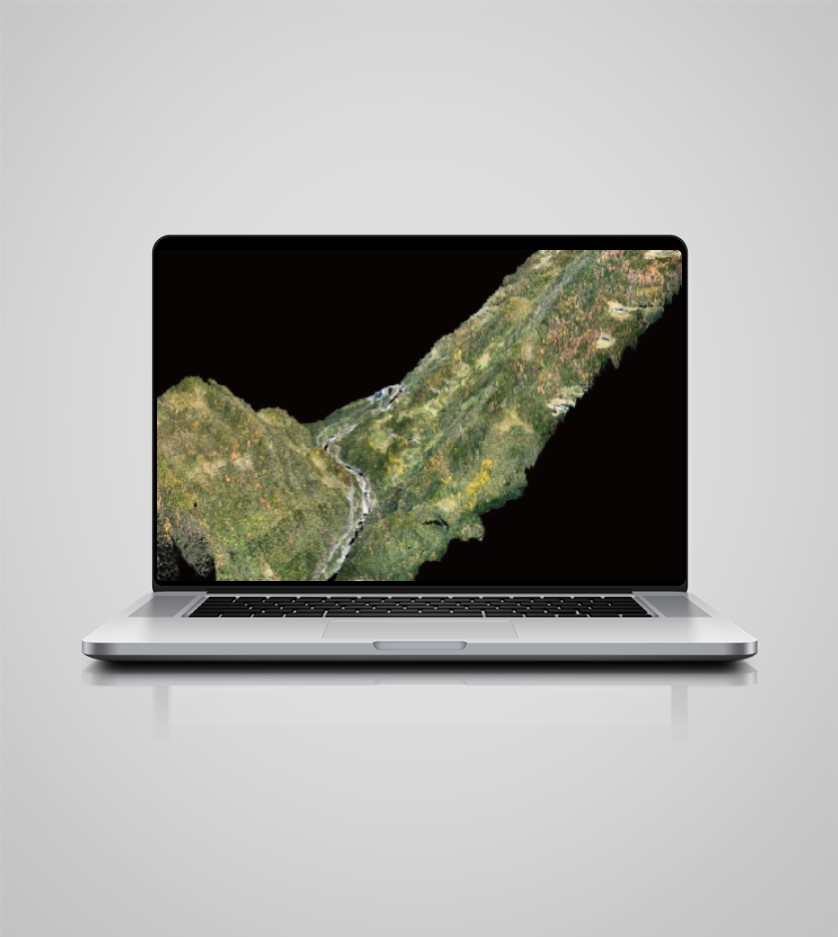

AA15 Pro is built for higher altitude and larger coverage. It reaches up to 60 km²/h at 600 m with about 10 pts/m², compared with about 18 km²/h for AA6 and AA6D, while supporting higher-end cameras.
Select flight altitude based on reflectivity, target point density, terrain, and PRR settings. Datasheet guidance can help match survey altitude to vegetation, asphalt, or bare-ground conditions.
Choose the 100 MP nadir camera for efficient orthophoto production and 2D mapping. Select the 300 MP oblique camera for facade capture, textured 3D models, and city-scale reality modeling.
The price of the CHCNAV AlphaAir 15 Pro (AA15P) depends on the selected configuration. For detailed pricing and options, please contact CHC Navigation through the inquiry page.
