GlobalUp to 2,100 m with typical AGL of 100 to 600 m
Up to 1,000,000 pts/s at 120 m AGL with 220 pts/m², and 200,000 pts/s at 400 m AGL with 13 pts/m².
Dual APS-C CMOS sensors, with 110° ultra-wide FOV
Only 1.85 kg, delivering up to 40 minutes of endurance and 15 km² coverage per mission on the CHCNAV X500.

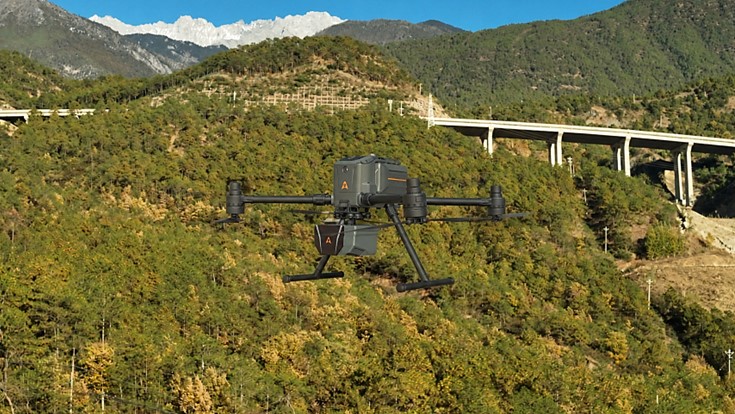

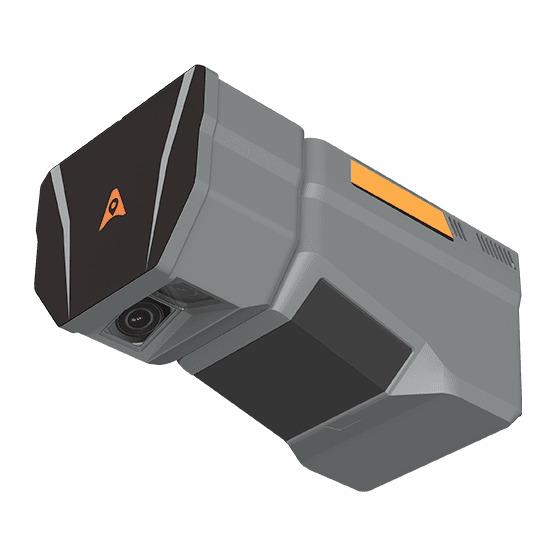

The AA6D integrates an upgraded core laser with up to 2,100 m ranging capability and supports typical flight altitudes from 100 to 600 m AGL. Its high-grade IMU, with 0.3°/h bias stability, ensures reliable performance in complex, high-relief terrain.
Powered by 5th-generation RWP real-time waveform processing with seven multi-period capabilities, the AA6D supports 1,000,000 pts/s at 120 m AGL with 220 pts/m2, and 200,000 pts/s at 400 m AGL with 13 pts/m2. With innovative real-time multi-period algorithm, real-time point cloud is also supported in high PRR.

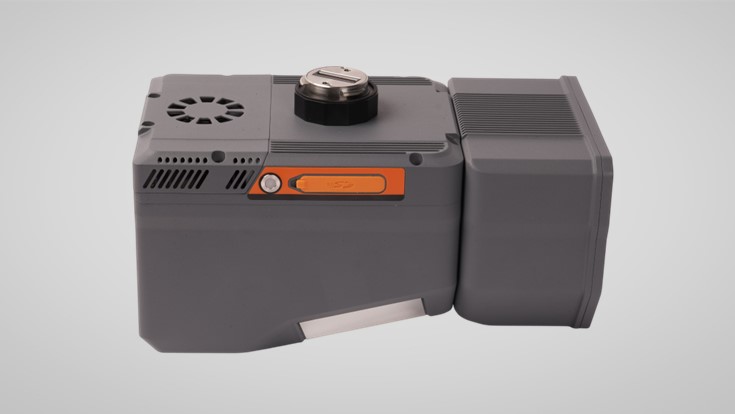

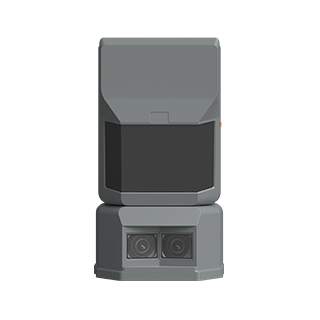

The AA6D integrates dual APS-C CMOS sensors, delivering a 110° ultra-wide field of view and up to 30% higher operational efficiency for high-coverage aerial mapping.

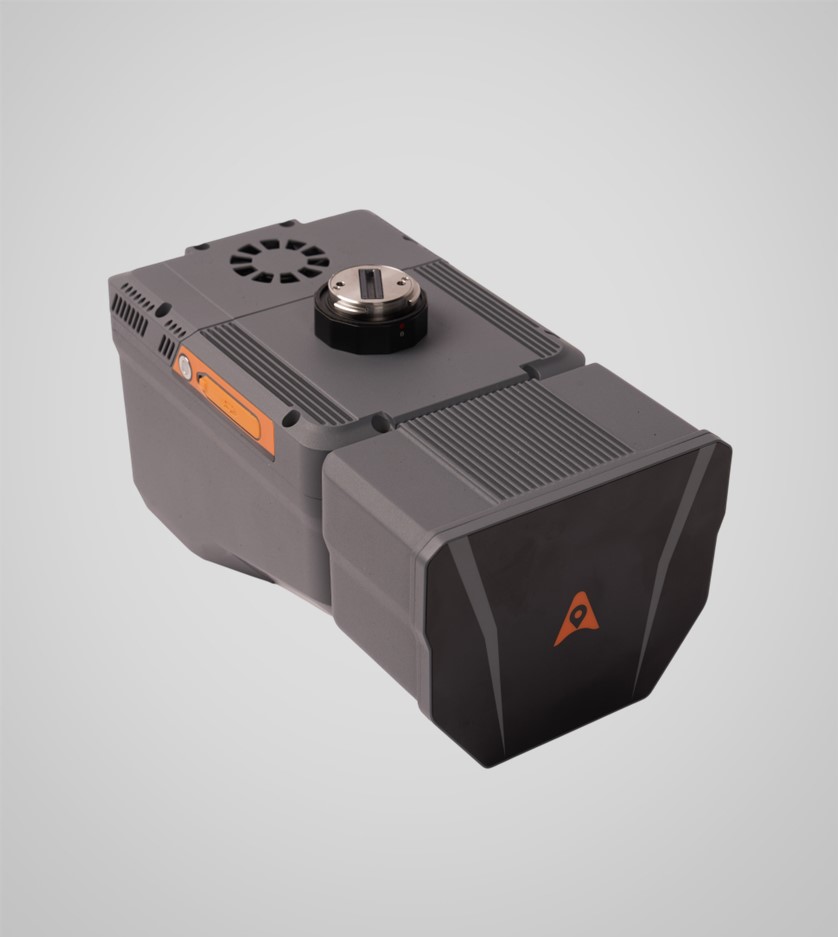

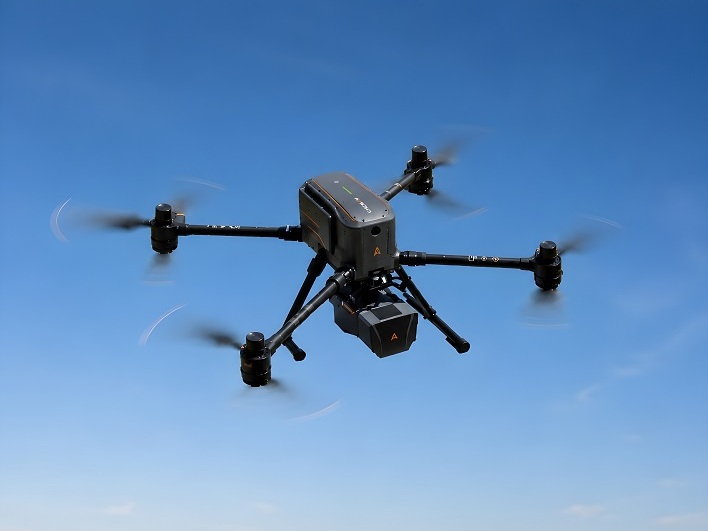

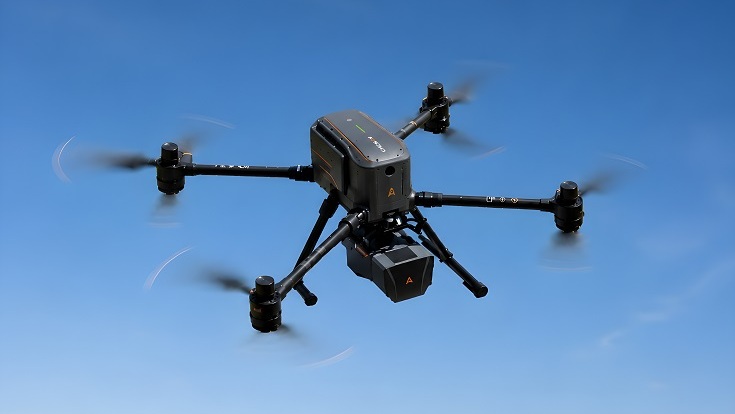

Weighing only 1.85 kg, the AA6D delivers up to 40 minutes of effective flight time on the CHCNAV X500 and covers up to 15 km² per mission.

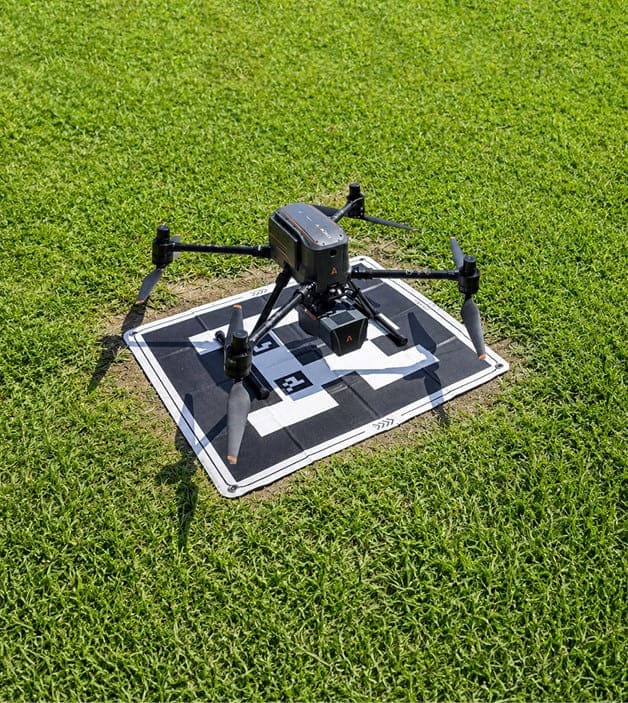

With open interface protocols, the AA6D supports seamless integration with mainstream multirotor and fixed-wing UAV platforms, enabling expanded mission scenarios.
Land Surveying
Forestry Survey
Road / Highway Survey
Power Line Inspection
Emergency Response
SEEKING FOR PERFECT SOLUTION TO FIT YOUR NEEDS?
Contact CHC Navigation to create a customized solution tailored to meet the specific needs of your business.
AA6D delivers major upgrades in range, accuracy, and point density:
Longer range: The AA6D integrates an upgraded core laser with a maximum ranging capability of up to 2,100 m—three times that of its predecessor.
Higher accuracy: Equipped with a 0.3°/h bias-stability IMU, AA6D maintains reliable mapping accuracy even at typical flight altitudes of 100–600 m.
Higher point density: Powered by 5th-generation RWP real-time waveform processing, AA6D delivers up to 1M pts/s with a point density of 220 pts/m² at 120 m AGL, and 200,000 pts/s with 13 pts/m² at 400 m AGL.
The AA6 is equipped with a 4/3-inch CMOS sensor, offering 25 MP imaging resolution and support for 100 MP output. The AA6D integrates dual APS-C CMOS sensors with a 110° ultra-wide field of view, requiring only 20% side overlap and delivering up to 30% higher operational efficiency compared with the single-camera version.
AA6D supports data transfer speeds up to 200 MB/s, significantly faster than previous systems. Storage cards are user-swappable during operation, enabling continuous missions.
APS-C CMOS sensors are about 60% larger than 4/3-inch sensors, enabling better light capture and improved image quality. This helps the AA6D deliver clearer, more detailed imagery, especially in low-light conditions or high-altitude aerial mapping missions.
The price of the CHCNAV AA6D depends on your selected configuration. For detailed pricing and options, please contact CHC Navigation through the inquiry page.
